ANAESTHESIA SYSTEMS

Mindray™
Wato EX 65 New

Product Description

The WATO EX-65 takes the recognized feature-rich anesthesia system to the next level.

Within a small footprint, clinicians benefit from modular scalability with advanced ventilation modes, integrated gas analysis, an optional drive gas auto switch and a spirometry loops screen.

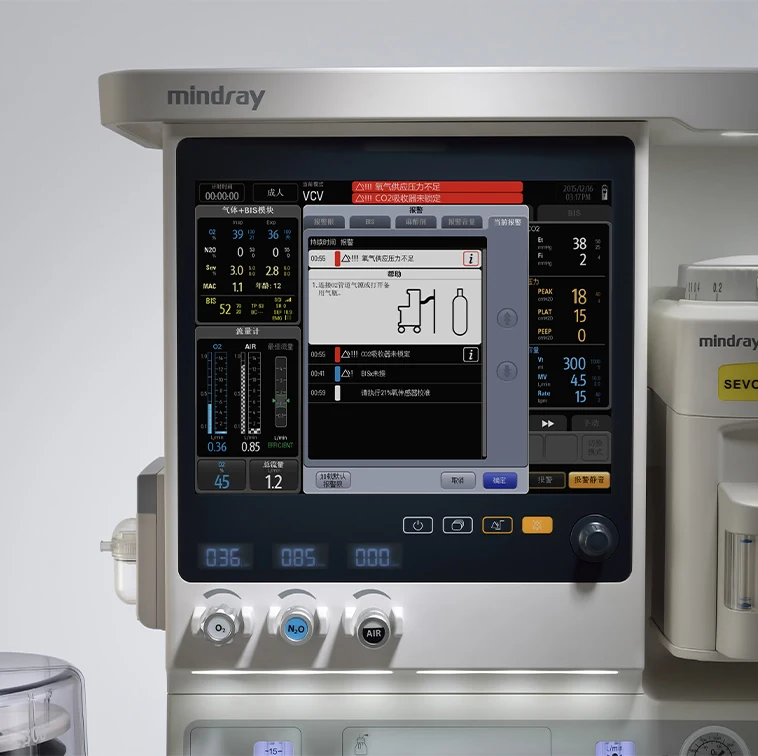

The high-resolution full-colour touchscreen supports informed decision-making through clearly displayed graphical and numerical data. Combined with its intuitive user interface, the WATO EX-65 reduces the amount of interaction required, streamlining your workflow and allowing you to focus on your patients.

Through HL7, the WATO EX-65 can seamlessly connect to third-party Electronic Patient Records (EPR) and other clinical information systems, helping inform clinical decisions and enhance efficiency.

  • Configurable ventilation modes include VCV, PCV, PCV-VG, SIMV-VC, SIMV-PC, SIMV-VG, CPAP/PS and PSV+Apnoea (with I:E setting
  • Optional integrated gas analysis provides dual agent auto identification, age-related MAC values and capnography

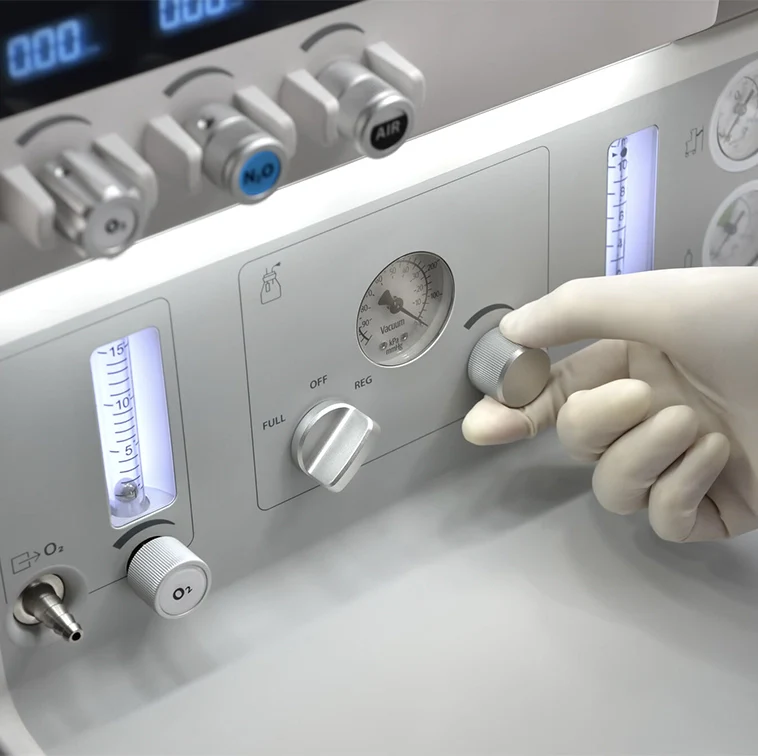

  • Auxiliary oxygen/air flow meter
  • Automatic compliance compensation and fresh gas compensation maintain accurate tidal volumes

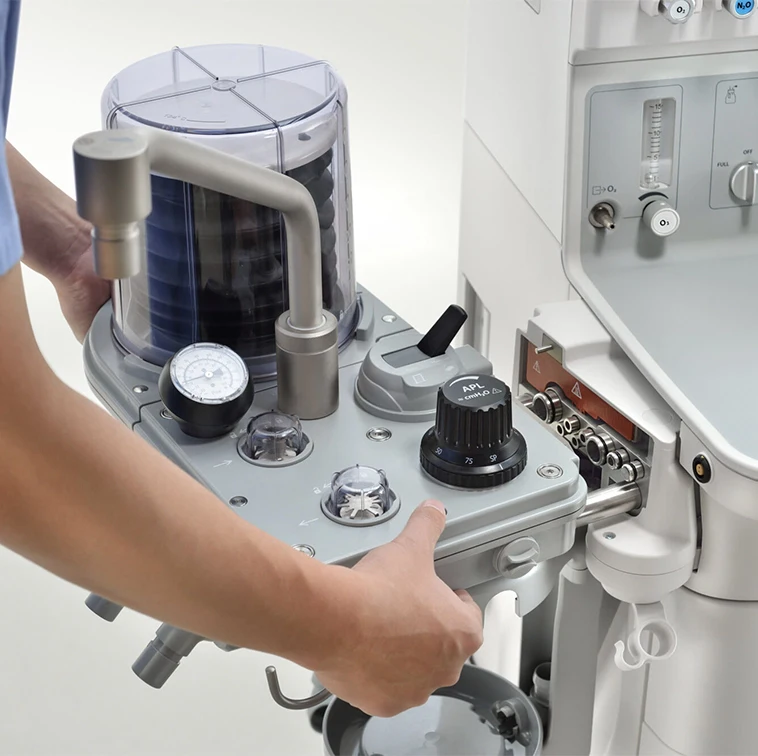

  • The integrated heated breathing system maintains a constant system (or core) temperature, virtually eliminating internal condensate build-up
  • The optional Agent Gas (AG) module provides comprehensive breath-by-breath analysis of FiO2, EtO2, EtCO2, N2O, auto-identification of five anaesthetic agents and BIS
  • Smart Alarm notifies the user of adverse situations with real-time information
    12.1-inch (WATO EX-65) or 15-inch (WATO EX-65Pro) full-colour touchscreen
  • Dual intensity LED lighting for low light conditions
  • Battery back-up (one battery) expandable to two batteries (150 minutes)
  • Economical single container absorber reduces compressible dead space volume and is compatible with either non-proprietary pre-packaged or loose fill solutions
  • HL7 output allows interoperable connectivity with all leading clinical information systems
  • Compatible with an extensive range of Mindray and third-party monitors and accessories
  • Optional lung recruitment monitoring software available
  • Optional drive gas auto switch function
  • Optional integrated patient suction system
  • Optional anaesthetic agent calculation to monitor consumption and reduce costs
  • Emergency back-up flow control system (ECBFS) available on the EX-65Pro
  • Automatic self-test at start-up
