VENTILATION

Vyaire™

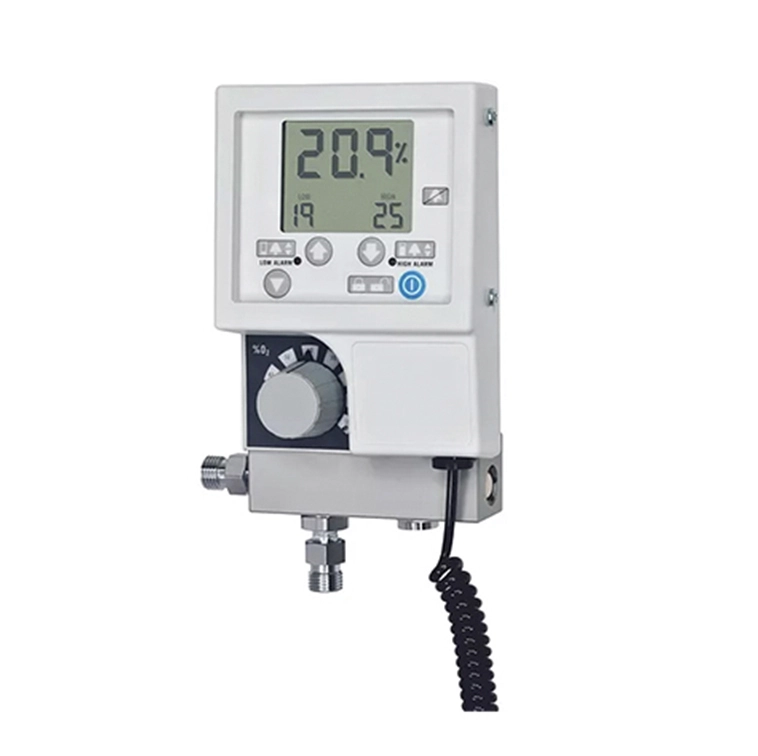

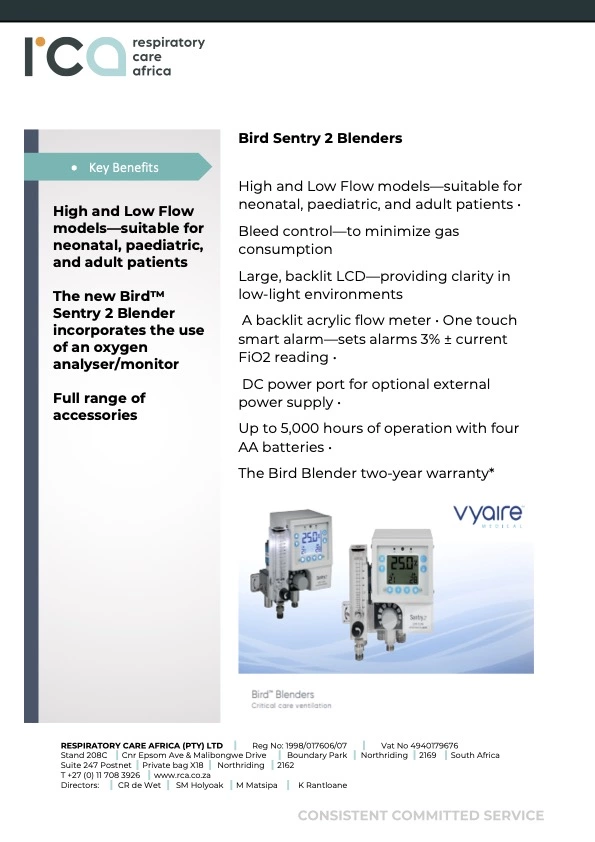

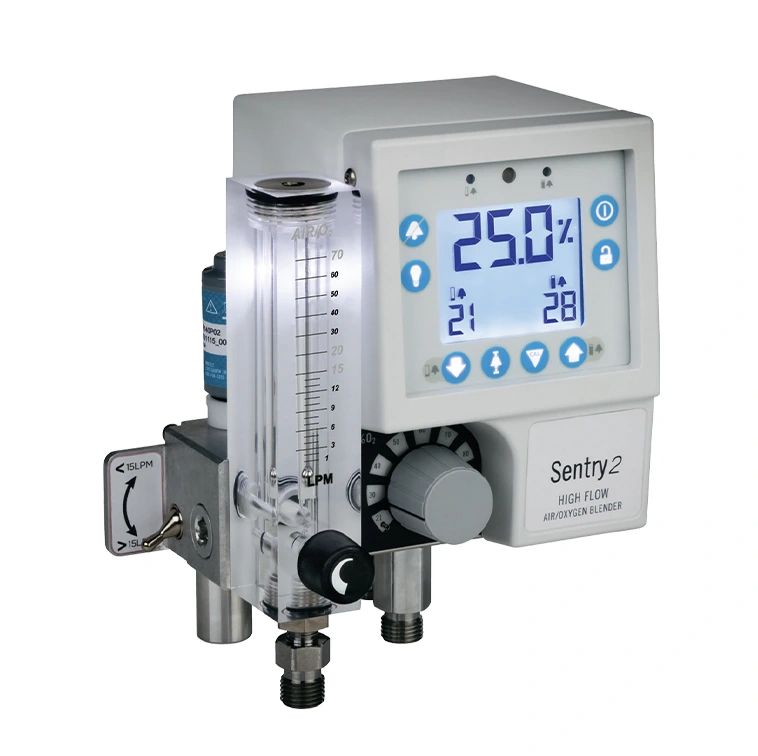

Bird Sentry 2 Blender

Product Description

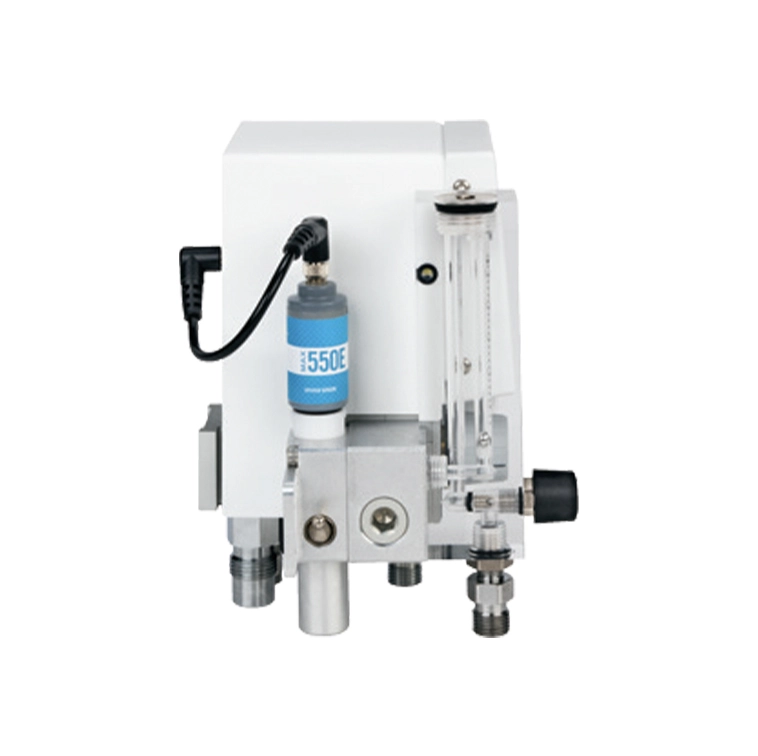

An oxygen monitor, analyzer and blender in one compact, affordable unit.

The Bird Sentry compact air/oxygen gas mixing device incorporates the use of a battery powered oxygen analyzer/monitor. The gas mixing device (blender) provides for precise mixing of medical grade air and oxygen. The analyzer measures the selected oxygen concentrations from the blender’s gas flow and displays these measured concentrations on a digital display. The monitor provides high and low alarm limits that, when exceeded, cause an audible/visual alarm to activate.

  • High and Low Flow models — suitable for neonatal, paediatric, and adult patients
  • The new Bird™ Sentry 2 Blender incorporates the use of an oxygen analyser/monitor
  • Full range of accessories

#

Part No.

Description

1

CSC110

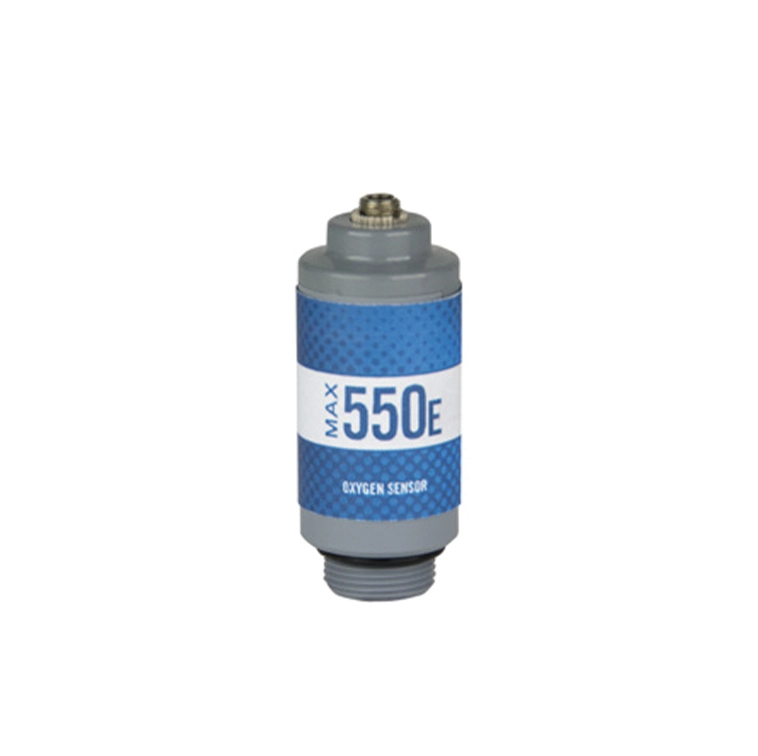

Oxygen sensor (MAX550E)

2

31232-001

Oxygen sensor connection cable

3

31234-001

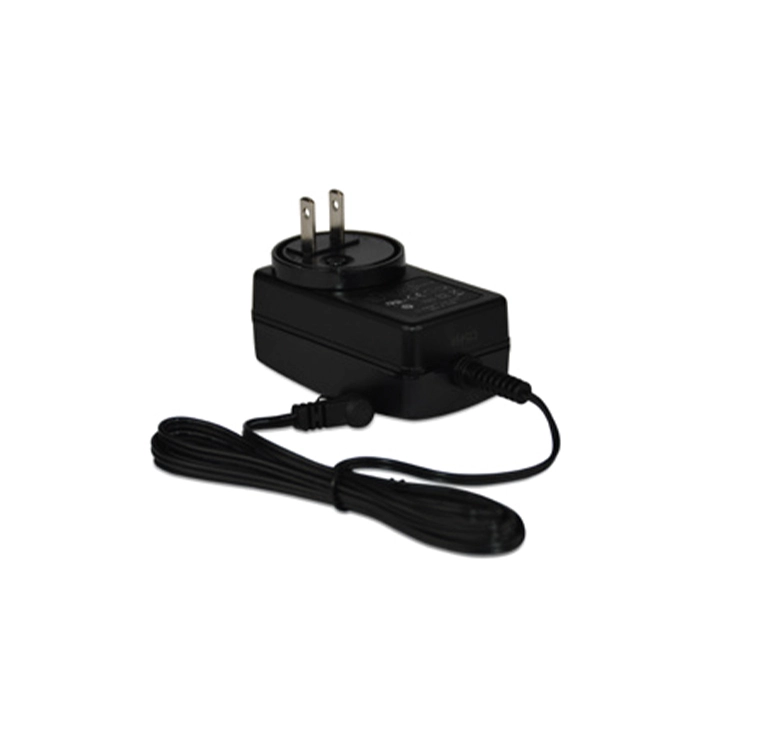

Power Supply (international), 7.5V 250mA Includes plug types A, C, G and I

4

26209-001

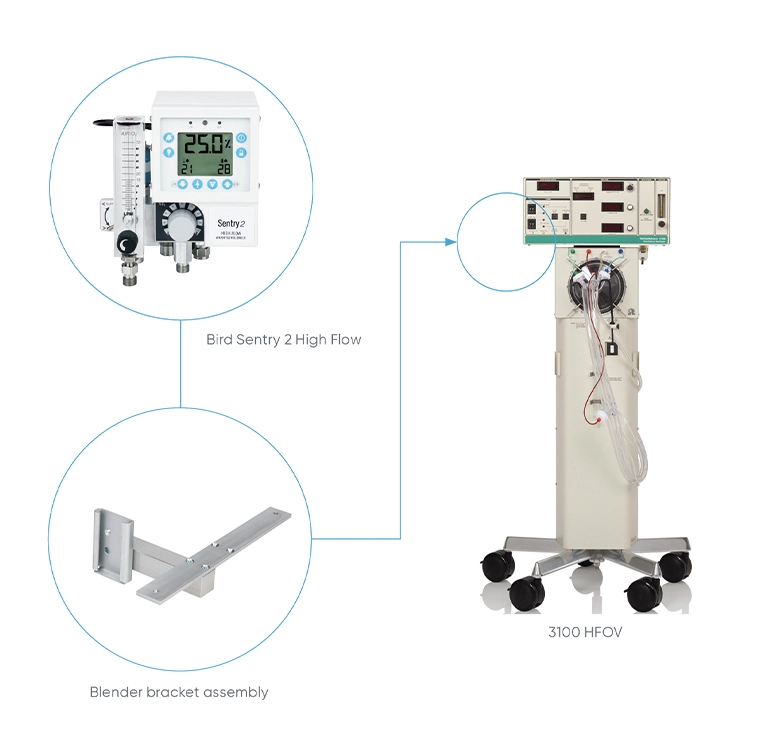

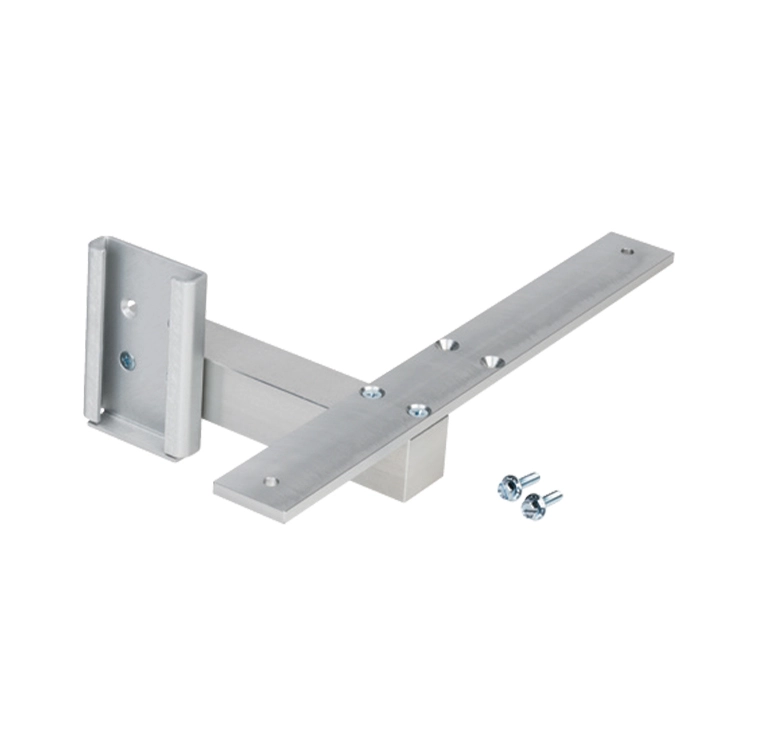

Blender bracket assembly

5

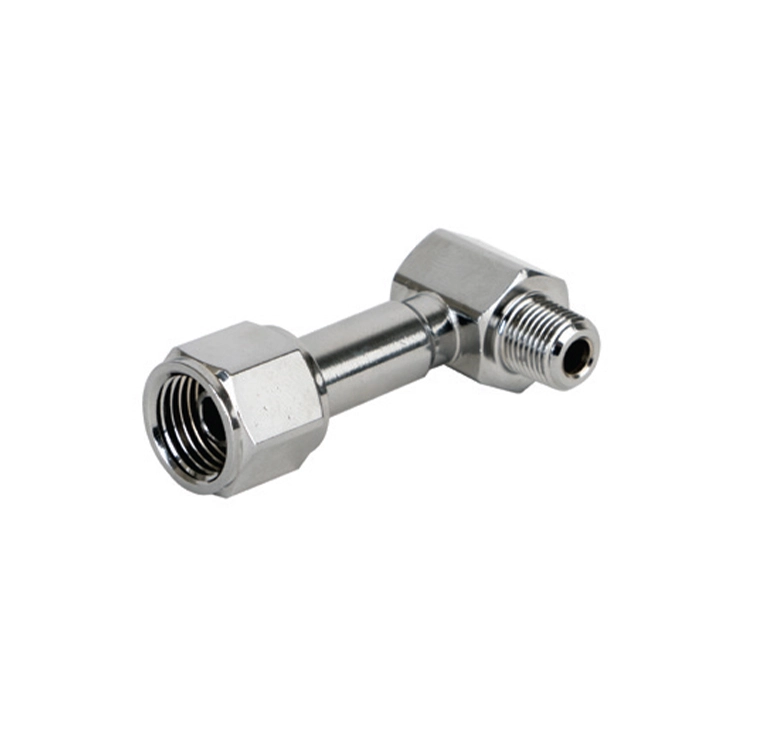

31733-001

90° elbow adapter (long) for use with Bird Sentry 2 Blender

6

31732-001

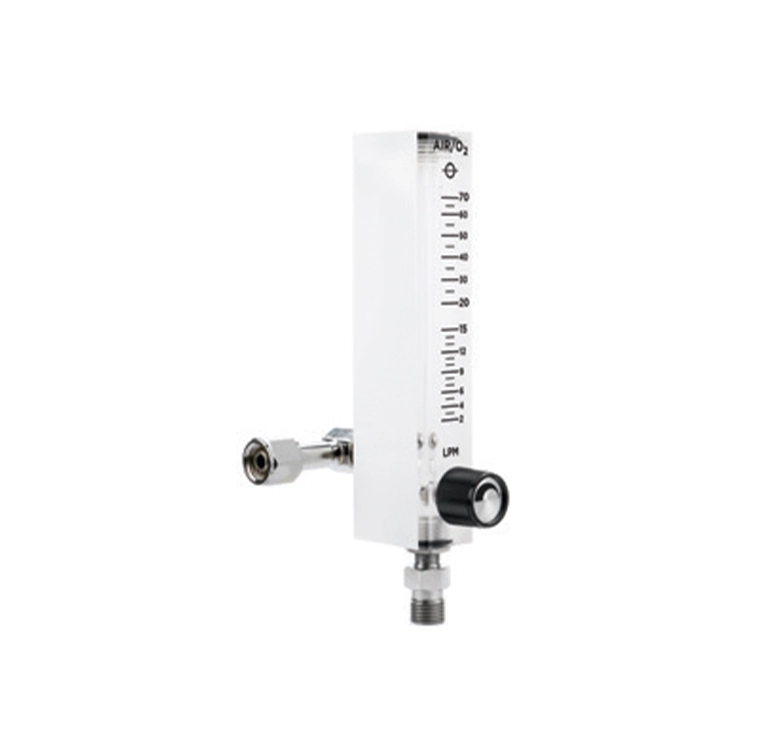

Dual tapered 0-70 LPM flow meter with DISS elbow adapter for use with Bird Sentry 2 Blender

7

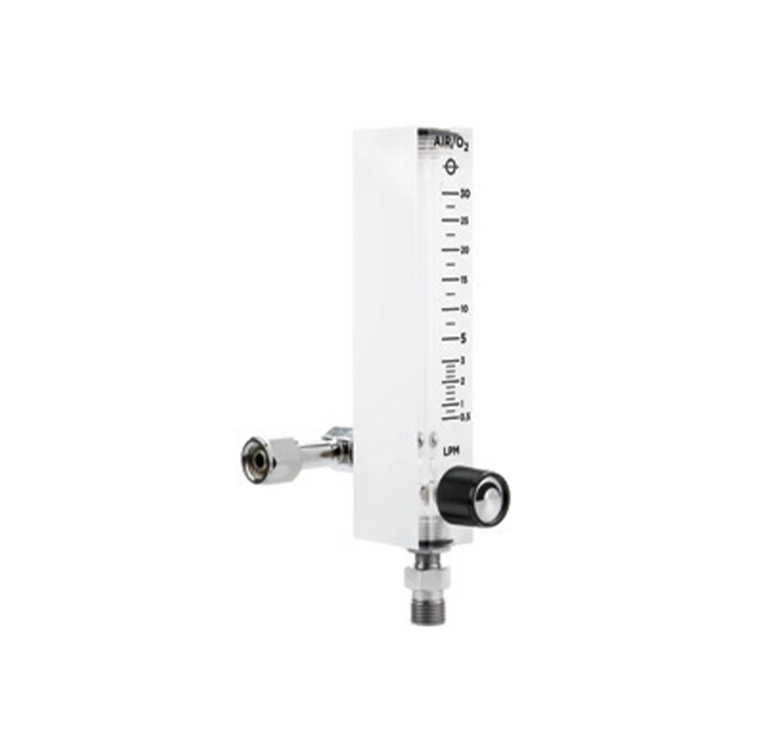

31732-002

Dual tapered 0-30 LPM flow meter with DISS elbow adapter for use with Bird Sentry 2 Blender

8

31732-003

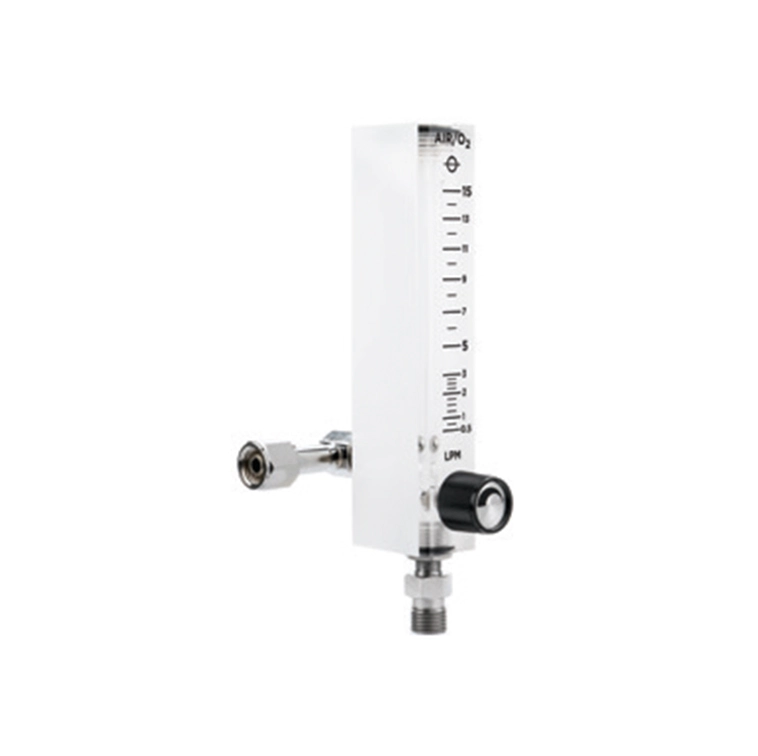

Dual tapered 0-15 LPM flow meter with DISS elbow adapter for use with Bird Sentry 2 Blender

9

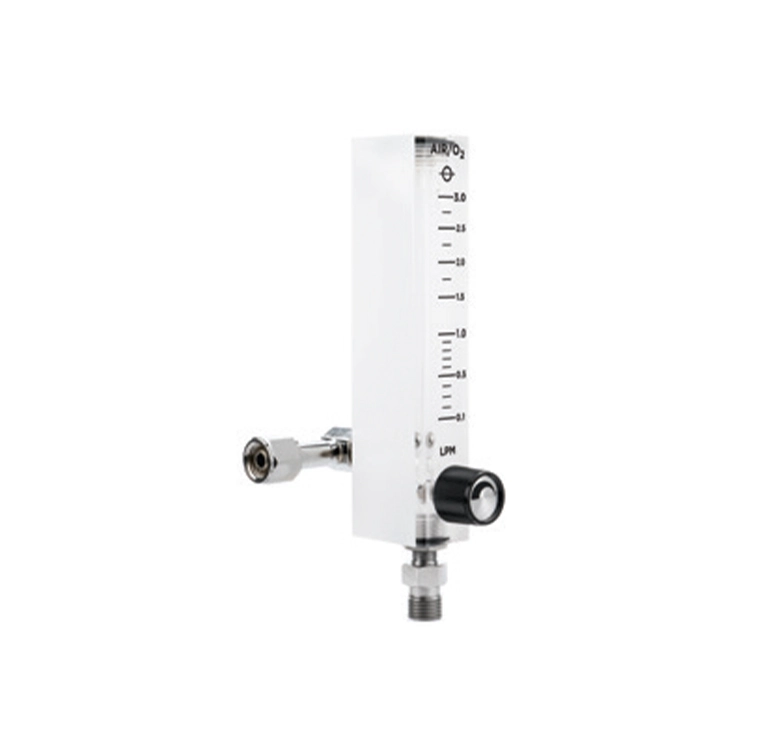

31732-004

Dual tapered 0-3 LPM flow meter with DISS elbow adapter for use with Bird Sentry 2 Blender
